Modulador de LED con SCR (CIR5378S)

Written by: Newton C. Braga
Category: Banco de circuitos

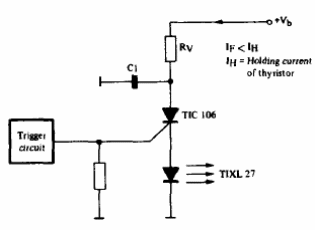

    El circuito seleccionado se encuentra en el manual de optoelectrónica de Texas Instruments. RC y C1 determinan la intensidad del pulso generado. Se pueden utilizar LEDs equivalentes.
