)Control de motor de paso - STK6982H (CIR1002S )

Written by: Newton C. Braga
Category: Banco de circuitos

CIR1002S

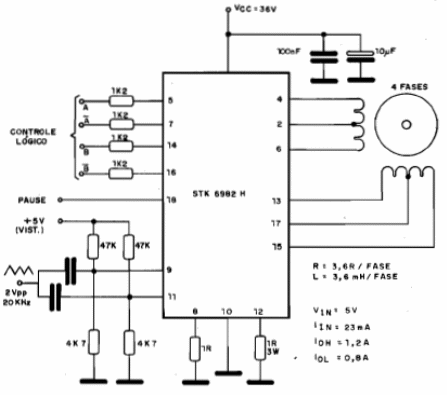

La corriente máxima de las salidas del circuito integrado STK6982H en el nivel alto es de 1,2 A y 0,8 A en el nivel bajo. El STK es un circuito híbrido, no muy fácil de obtener pero que resulta en un excelente controlador de motor de paso con diversos recursos como pause, strobe y otros. Vea más descargando el datasheet de este componente. La tensión de alimentación es de 36 V y la tensión de control es de 5 V, pudiendo ser hecha a partir de circuitos lógicos TTL. Este circuito puede ser usado como shield para microcontroladores.
