Convertidor de Impedancia con FET (CIR1951S)

Written by: Newton C. Braga
Category: Banco de circuitos

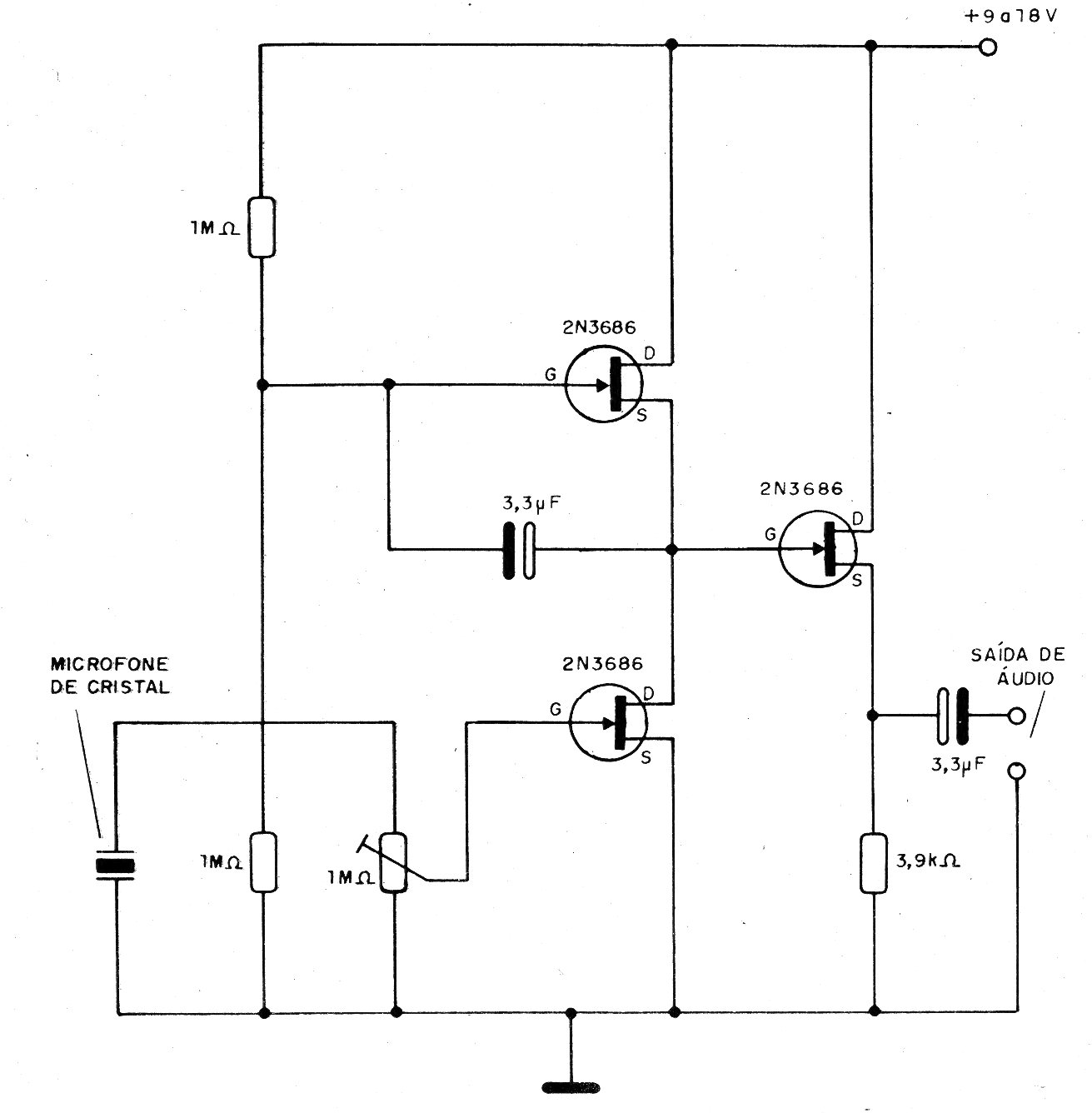

    Este circuito utiliza 3 FET para convertir la señal de alta impedancia de un micrófono de cristal o cerámico en una señal de baja impedancia. El circuito es de una documentación de 1993 y FETs equivalentes como el BF245 pueden ser utilizados.
