Amplificador de 14 W con el TDA2030 (CIR1753S)

Written by: Newton C. Braga
Category: Banco de circuitos

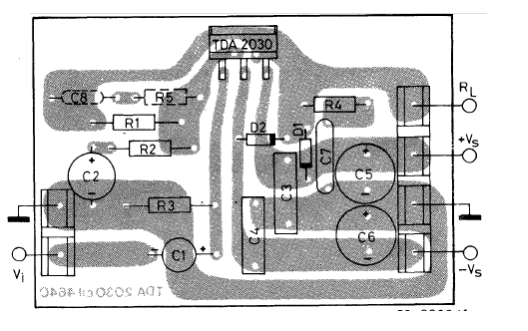

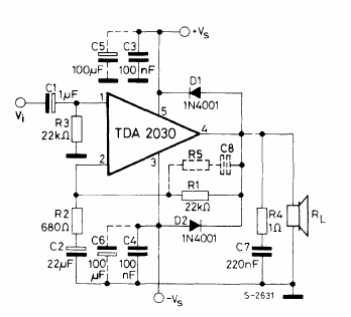

     La fuente debe ser simétrica de 14 V y la carga de 4 ohms para la potencia indicada. El circuito es del manual de circuitos integrados lineales de la SGS y una sugerencia de placa es dada. El CI debe estar dotado de un buen disipador de calor.
