Radio autoalimentada (CIR23217S)

Written by: Newton C. Braga
Category: Banco de circuitos

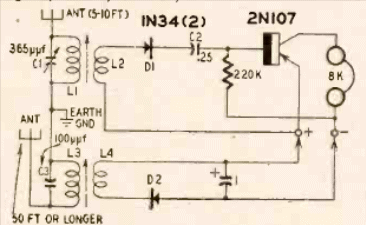

En un circuito de sintonía elegimos la emisora ​​a escuchar y en el otro una emisora ​​potente para dar potencia al circuito amplificador. Eso es lo que hace este circuito electrónico de radio de octubre de 1957.
