Microtransmisor FM en pastilla (CIR23195S)

Written by: Newton C. Braga
Category: Banco de circuitos

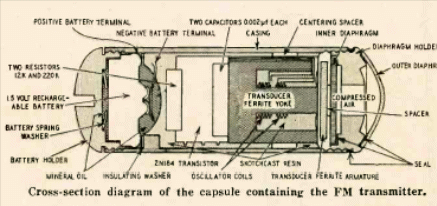

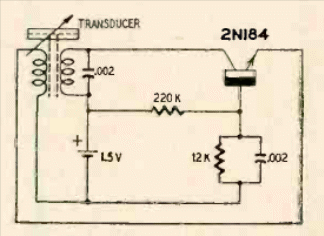

Este transmisor se puede montar dentro de una pastilla, según noticia de una Radio Electrónica de junio de 1957. El montaje se realizó con técnicas que se perfeccionaron en la época.
