Puente de capacitancia (CIR23164S)

Written by: Newton C. Braga
Category: Banco de circuitos

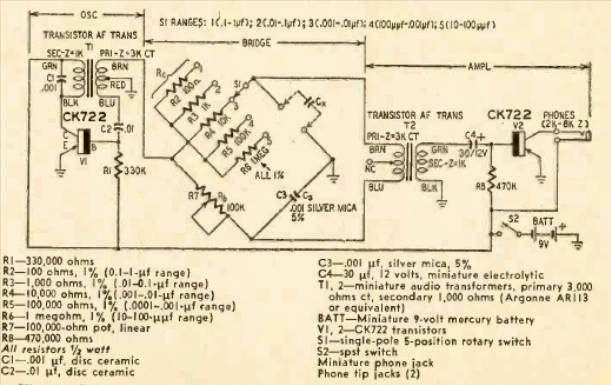

Este puente de banco se encontró en la revista Radio Electronics de febrero de 1957. Un circuito genera un tono de audio aplicado al puente y tiene un amplificador con un auricular como detector.
