Oscilador de cristal (CIR23155S)

Written by: Newton C. Braga
Category: Banco de circuitos

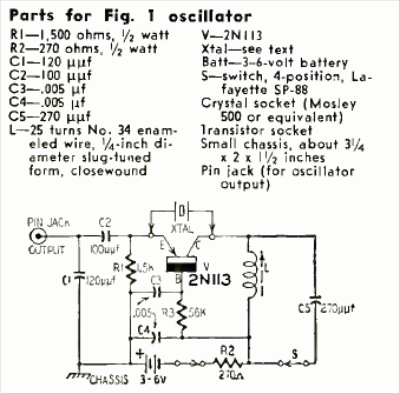

Encontrado en la edición de noviembre de 1956 de Radio Electronics, este oscilador de un solo transistor tiene una frecuencia controlada por cristal. El límite es de alrededor de 12 megahertz.
