Frecuencímetro analógico (CIR23154S)

Written by: Newton C. Braga
Category: Banco de circuitos

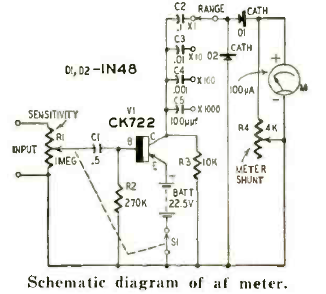

Este circuito simple con el CK722 para frecuencias en el rango de audio se encontró en la revista Radio Electronics de octubre de 1956. Los rangos de frecuencia dependen de la selección de capacitores.
