Receptor simple (CIR23148S)

Written by: Newton C. Braga
Category: Banco de circuitos

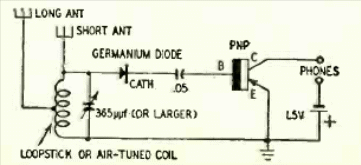

Esta radio sencilla de 1 transistor fue publicada en la revista Radio Electronics de junio de 1956. El auricular debe ser de alta impedancia y para ondas medias o cortas la antena debe ser larga.
