Etapa de audio con 6 transistores (CIR23144S)

Written by: Newton C. Braga
Category: Banco de circuitos

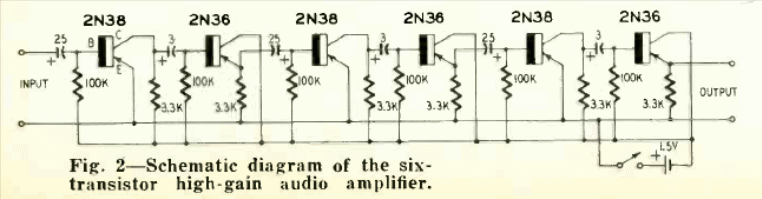

Este circuito de alta ganancia se encontró en la revista Radio Electronics de junio de 1956. Los transistores están conectados en cascada con solo 1,5 V de alimentación.
