Amplificador de ondas cerebrales (CIR23077S)

Written by: Newton C. Braga
Category: Banco de circuitos

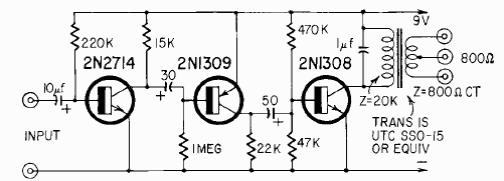

Este amplificador de alta ganancia para aplicaciones de señal muy débil tiene una ganancia de 500 000. Fue encontrado en un Radio Electronics con fecha de agosto de 1954. El circuito tiene una salida para auriculares.
