Amplificador para 200 MHz (CIR23047S)

Written by: Newton C. Braga
Category: Banco de circuitos

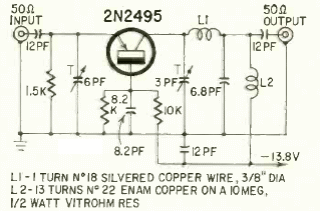

Este circuito es de una Radio Electrónica de octubre de 1953. El circuito es alimentado por una batería de automóvil y sirve como refuerzo para las señales de TV. La ganancia es de 15,5 dB.
