Amplificador con ganancia de 33 dB (CIR23036S)

Written by: Newton C. Braga
Category: Banco de circuitos

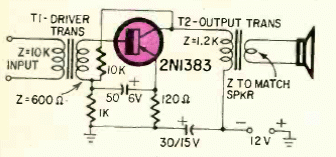

Este circuito de 1 transistor tiene una ganancia de 33 dB que requiere un transformador de salida para controlar el altavoz. El circuito es de un Radio Electronics de octubre de 1953.
