Puente de inductancia (CIR23030S)

Written by: Newton C. Braga
Category: Banco de circuitos

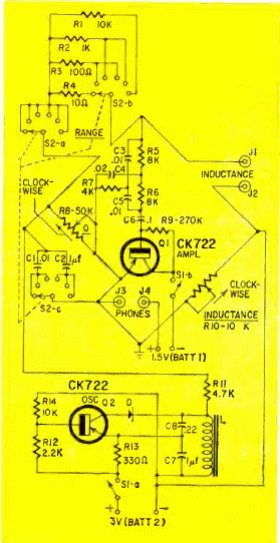

Este puente de inductancia de banco es de un artículo publicado en una revista Radio Electronics de septiembre de 1953. La base son los transistores CK722 de la época. El puente mide de 0,1 mH a 100 H y también factor Q.
