Medidor de inmersión (DIP meter) (CIR23010S)

Written by: Newton C. Braga
Category: Banco de circuitos

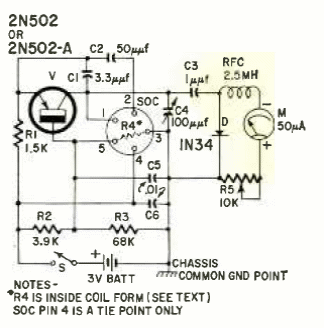

Este es uno de los primeros circuitos transistorizados de dispositivos de este tipo que hemos visto en publicaciones técnicas. La revista es una Radio Electrónica de febrero de 1953 y el transistor utilizado es de germanio en la época.
