Oscilador controlado por luz (CIR23000S)

Written by: Newton C. Braga
Category: Banco de circuitos

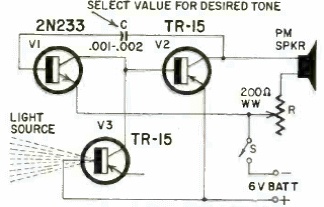

Este oscilador de audio controlado por luz se encontró en la revista Radio Electronics de noviembre de 1952. Los transistores eran tipos de germanio en ese momento. Para el sensor V3, retire la parte superior para que el chip reciba luz.
