Mezclador con diodo túnel (CIR22994S)

Written by: Newton C. Braga
Category: Banco de circuitos

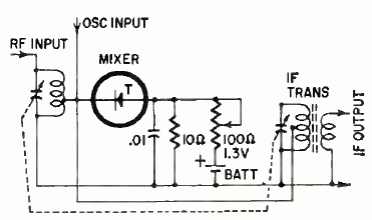

Encontramos este circuito en la revista Radio Electronics de noviembre de 1952. El circuito se puede utilizar en un receptor superheterodino. Tenga en cuenta la baja tensión de alimentación.
