Filtro Cerámico 455kHz (CIR22986S)

Written by: Newton C. Braga
Category: Banco de circuitos

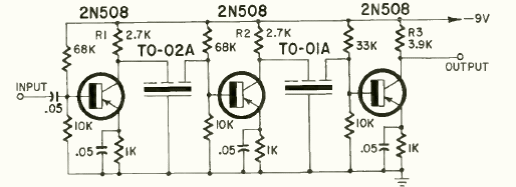

Este circuito para un filtro cerámico de 455 kHz lo encontramos en la revista Radio Electronics de octubre de 1952. El circuito utiliza transistores de la época y fue la primera configuración de este tipo que encontramos en una revista técnica.
