Reloj sincronizado (CIR22984S)

Written by: Newton C. Braga
Category: Banco de circuitos

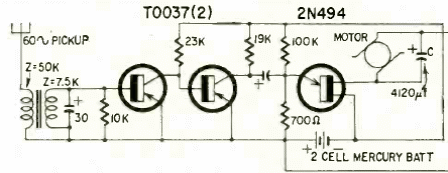

Este circuito se utiliza para obtener la activación sincronizada de un reloj mecánico de batería. El circuito es de un Radio Electronics con fecha de agosto de 1952. La antena utiliza el ruido de 60 Hz de la red capturado para la sincronización.
