Inyector de señal (CIR22971S)

Written by: Newton C. Braga
Category: Banco de circuitos

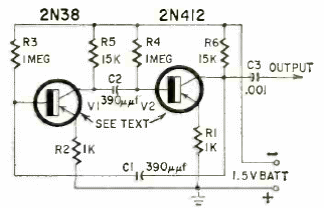

Este circuito es uno de los primeros de su tipo en ser publicado. Salió en una revista de 1952 y usa transistores de esa época. Los transistores estaban hechos de germanio y el suministro se hacía con solo 1 batería.
