Oscilador Estable (CIR22967S)

Written by: Newton C. Braga
Category: Banco de circuitos

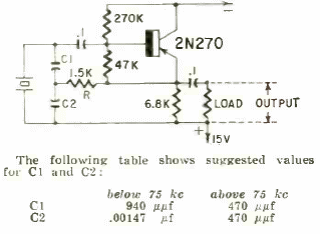

Este oscilador apareció en la revista Radio Electronics de septiembre de 1950. La frecuencia está determinada por los capacitores. El transistor es el 2N270, uno de los primeros tipos comerciales disponibles.
