Amplificador con ganancia 10 (CIR22957S)

Written by: Newton C. Braga
Category: Banco de circuitos

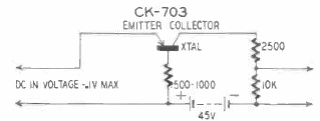

Este amplificador de transistores de la década de 1950 tenía una ganancia de 10. El circuito es de Radio Electronics, de la época en que los transistores se llamaban triodos de cristal.
