Amplificador de 2 transistores (CIR22956S)

Written by: Newton C. Braga
Category: Banco de circuitos

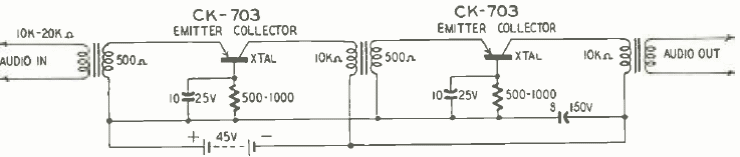

Este circuito de 1950 usó uno de los primeros transistores comerciales y tenía dos etapas para señales de audio. El circuito tenía buena ganancia para la época, mostrando ya las posibilidades futuras de los transistores.
