Calibrador de cristal (CIR22918S)

Written by: Newton C. Braga
Category: Banco de circuitos

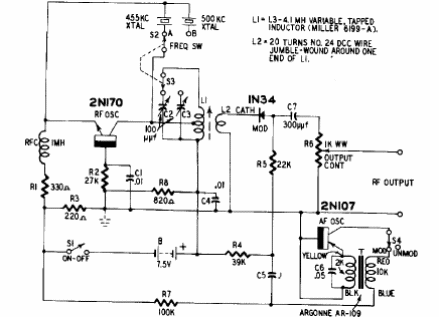

Este circuito se encontró en una documentación americana de los años 60. El circuito genera dos frecuencias para la calibración y se modula con una señal de audio. Los transistores son de la época.
