Relé sensible de potencia (CIR22894S)

Written by: Newton C. Braga
Category: Banco de circuitos

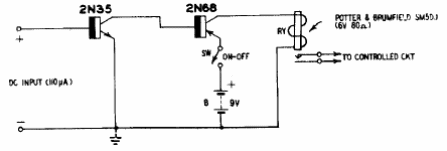

Este circuito se encontró en una documentación de los años 60. El transistor de accionamiento es un transistor de potencia. Recomendamos un resistor en serie con la base del transistor de entrada.



Relé sensible de potencia
Relé sensible de potencia
