Relé sensible (CIR22890S)

Written by: Newton C. Braga
Category: Banco de circuitos

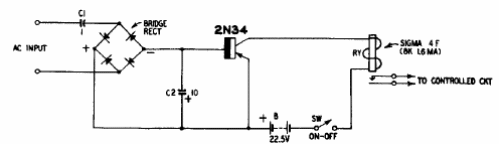

En este circuito de los años 60, la alimentación se realiza con 22,5 V, que es la tensión del relé. Podemos utilizar versiones modernas de transistores y relés. El circuito es para AC.
