Receptor ultrasónico (CIR22795S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este es el receptor del transmisor anterior. El micrófono es del tipo ultrasónico de alta impedancia. El circuito activa un relé. El amplificador operacional admite equivalentes.

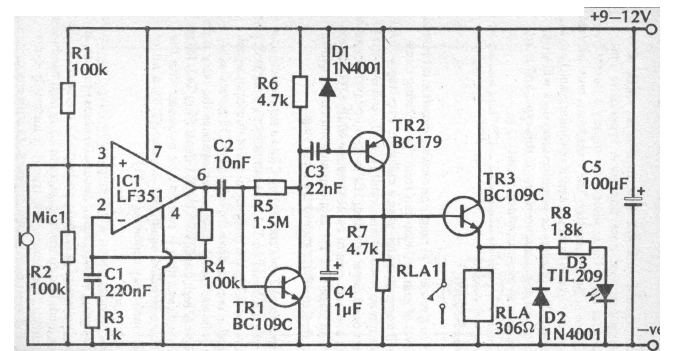

Receptor ultrasónico
Receptor ultrasónico | Haga click en la imagen para ampliar |
