Expansor de volumen (CIR22757S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito se encontró en una publicación inglesa de 1989. Los circuitos integrados son de la época, se pueden probar equivalentes modernos. La fuente no es simétrica.

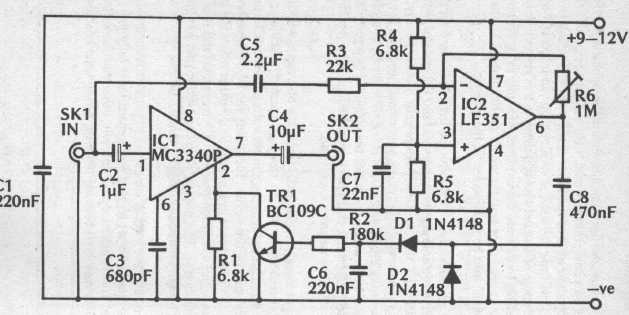

Expansor de volumen
Expansor de volumen
