Preamplificador de micrófono (CIR22751S)

Written by: Newton C. Braga
Category: Banco de circuitos



Encontramos este circuito en una documentación en inglés de 1989. El circuito integrado utilizado no es muy común hoy en día. El circuito no necesita una fuente simétrica.

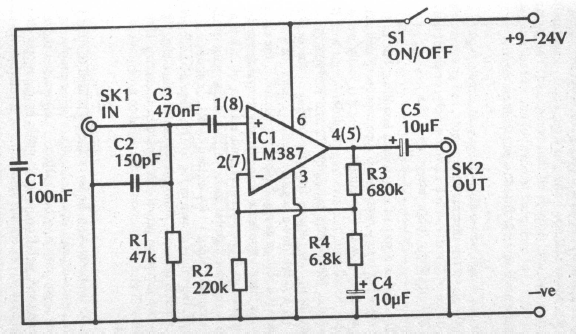

Preamplificador de micrófono
Preamplificador de micrófono
