Interruptor bidireccional para usar con triacs (CIR22744S)

Written by: Newton C. Braga
Category: Banco de circuitos

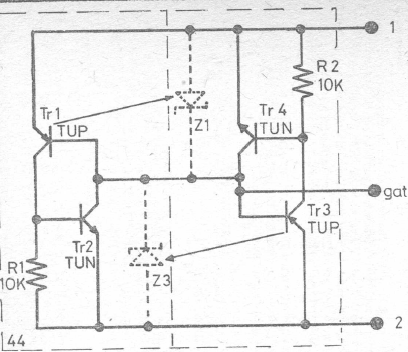

Este circuito, que se encuentra en la documentación en inglés antiguo, simula un diac y se puede usar para activar triacs. Los transistores son tipos de propósito general.



Interruptor bidireccional para usar con triacs
Interruptor bidireccional para usar con triacs
