Termostato (CIR22733S)

Written by: Newton C. Braga
Category: Banco de circuitos

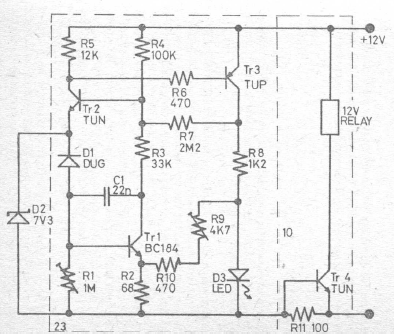

Este circuito se encontró en la documentación inglesa antigua. Los transistores son comunes y el sensor es un NTC de 1M. La activación se realiza a través de un relé.



Termostato
Termostato
