Radio Cristal de los años 60 (CIR22721S)

Written by: Newton C. Braga
Category: Banco de circuitos

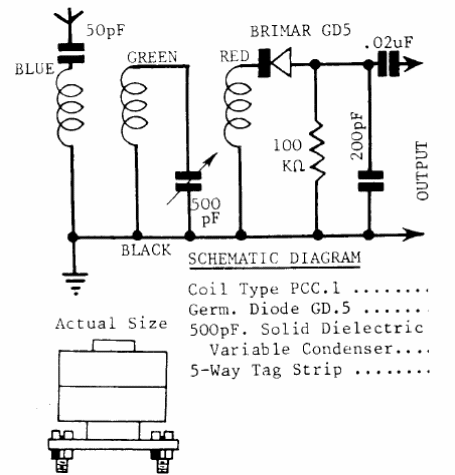

Encontrado en una publicación en inglés de la década de 1960, este circuito utiliza componentes de época, incluida la bobina de grado comercial.



Radio Cristal de los años 60
Radio Cristal de los años 60
