Temporizador de noche (CIR22703S)

Written by: Newton C. Braga
Category: Banco de circuitos

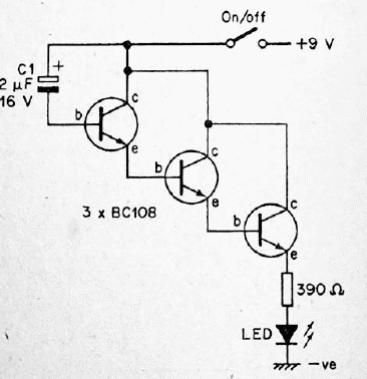

Una vez encendido, este circuito hace que un LED permanezca encendido durante aproximadamente 30 minutos. Los capacitores más grandes se pueden usar por más tiempo. Los transistores pueden ser BC548.



Temporizador de noche
Temporizador de noche
