Atenuador (CIR22662S)

Written by: Newton C. Braga
Category: Banco de circuitos

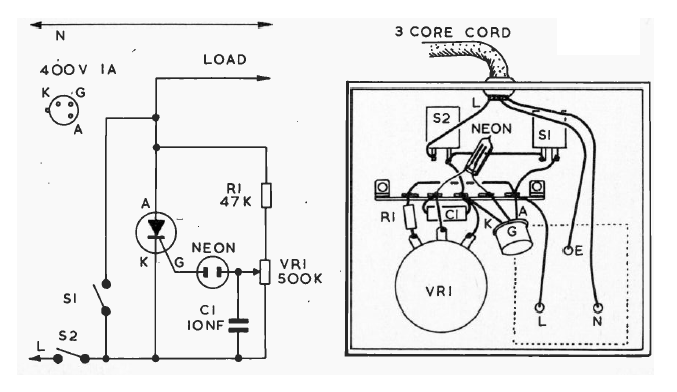

Este Dimmer muy detallado se encontró en una documentación en inglés de los años 90. El SCR podría ser un equivalente moderno como el TIC106. El circuito solo es adecuado para lámparas incandescentes.
