Vox (CIR22619S)

Written by: Newton C. Braga
Category: Banco de circuitos

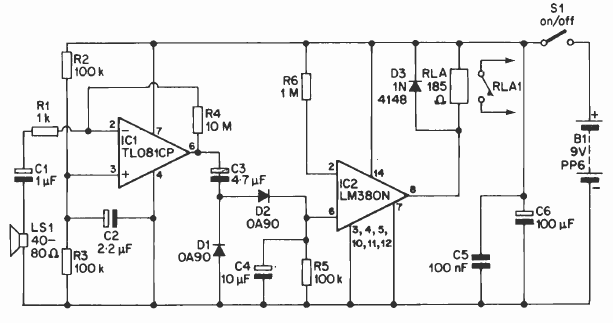

Este interruptor sónico, relé sónico o simplemente vox utiliza un altavoz de impedancia media como micrófono. El circuito es de los años 90 y el relé debe ser del tipo acorde a la tensión de alimentación
