Radio AM con FET (CIR22584S)

Written by: Newton C. Braga
Category: Banco de circuitos

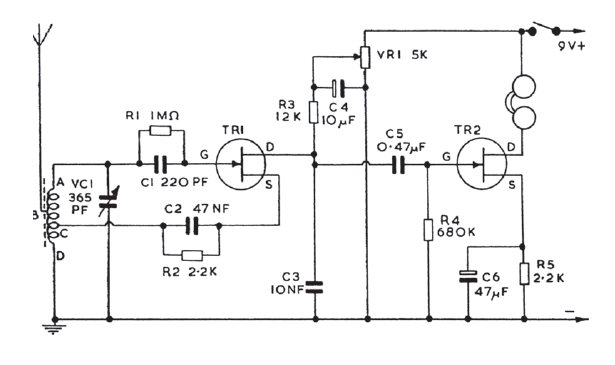

Este receptor con dos JFET comunes se encontró en una antigua documentación en inglés. El auricular es magnético de 500 ohms a 2 k ohms y los transistores pueden ser BF245 o MPF102.



Radio AM con FET
