Oscilador de audio (CIR22563S)

Written by: Newton C. Braga
Category: Banco de circuitos

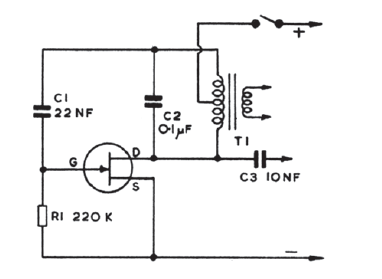

La frecuencia de este oscilador depende de T1 y C2. El transformador puede ser del tipo de audio antiguo. El transistor puede ser cualquier JFET de propósito general.



Oscilador de audio
