Oscilador de cristal (CIR22512S)

Written by: Newton C. Braga
Category: Banco de circuitos

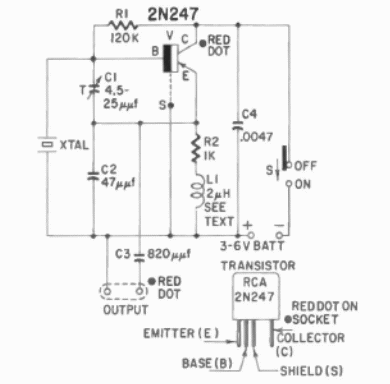

Este oscilador de cristal de propósito general se encontró en documentación de 1960. El circuito usa cristales de 1,5 a 14 MHz y el transistor está hecho de germanio de la época.



Oscilador de cristal
Oscilador de cristal
