Micro espía (CIR22420S)

Written by: Newton C. Braga
Category: Banco de circuitos

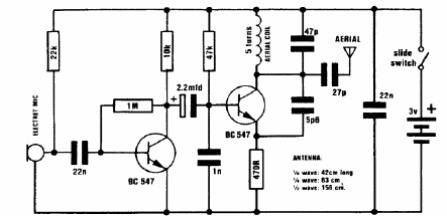

Ensamblado con componentes SMD, este circuito puede ser muy pequeño. El alcance es de unas pocas decenas de metros. Encontramos una documentación australiana de 1991.



Micro espía
Micro espía
