Amplificador de banda ancha (CIR22409S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito tiene una ganancia de tensión de 30 veces y una banda de paso de 14 MHz. El circuito es del manual de transistores de 1974 de Ferranti.

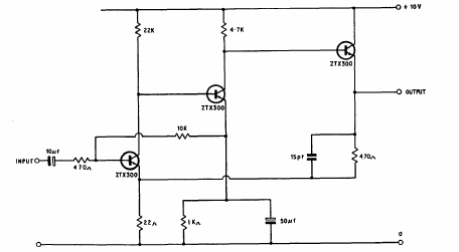

Amplificador de banda ancha
Amplificador de banda ancha
