Vox (CIR22315S)

Written by: Newton C. Braga
Category: Banco de circuitos

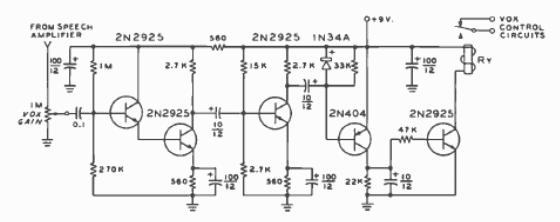

Este relé de sonido se encontró en una documentación estadounidense de 1977. El relé determina la potencia del circuito. Los transistores son tipos comunes en ese momento.



Vox
Vox
