Modulador AFSK (CIR22309S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito que usa solo transistores se encontró en la documentación de 1977. La frecuencia es de 4250 pulsos por segundo. Los componentes se pueden cambiar a otras frecuencias.

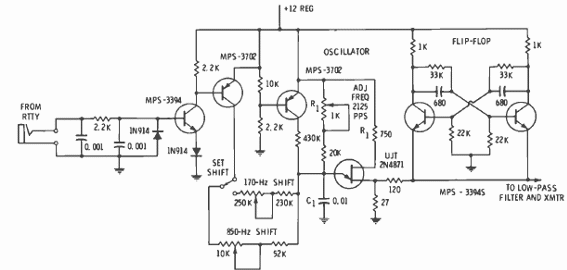

Modulador AFSK
Modulador AFSK
