Voltímetro con FET (CIR22254S)

Written by: Newton C. Braga
Category: Banco de circuitos

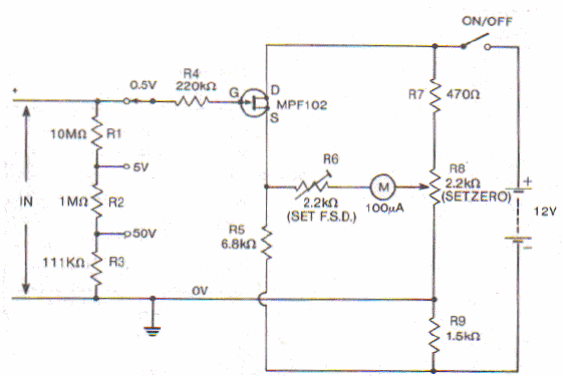

Este circuito simple se puede utilizar con un microamperímetro ordinario o con el rango de corriente más bajo de un multímetro. La resistencia de entrada es de 11,1 M ohms.



Voltímetro con FET
Voltímetro con FET
