Fuente simétrica (CIR22241S)

Written by: Newton C. Braga
Category: Banco de circuitos

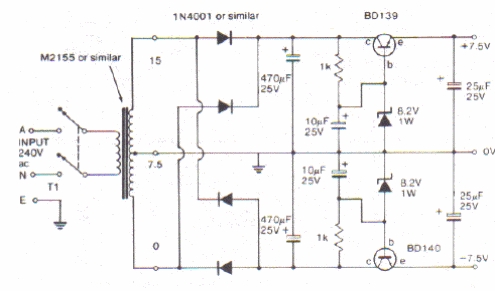

Al cambiar el zener, se pueden obtener otras tensiones de salida para esta fuente de alimentación simétrica. Con los transistores indicados, la corriente máxima es del orden de 500 mA.



Fuente simétrica
