FM Espía (CIR22238S)

Written by: Newton C. Braga
Category: Banco de circuitos

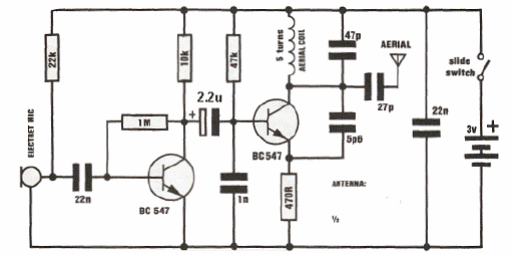

Este conocido circuito es otra versión de un transmisor de 2 transistores que se encuentra en Internet. En este circuito, la sintonización se realiza cambiando la bobina.



FM Espía
FM Espía
