Oscilador programable con potenciómetro digital (CIR22038S)

Written by: Newton C. Braga
Category: Banco de circuitos



Basado en el AD8510 de Analog Devices, este circuito consta de un oscilador Wien digital que proporciona ajustes independientes de amplitud y frecuencia. El circuito se obtuvo de la documentación de Internet.

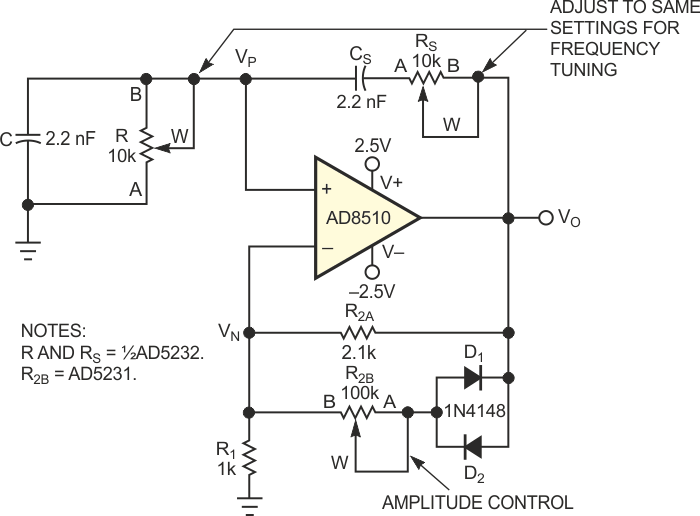

Oscilador programable con potenciómetro digital
Oscilador programable con potenciómetro digital | Haga click en la imagen para ampliar |
