Inversor de potencia (CIR22034S)

Written by: Newton C. Braga
Category: Banco de circuitos

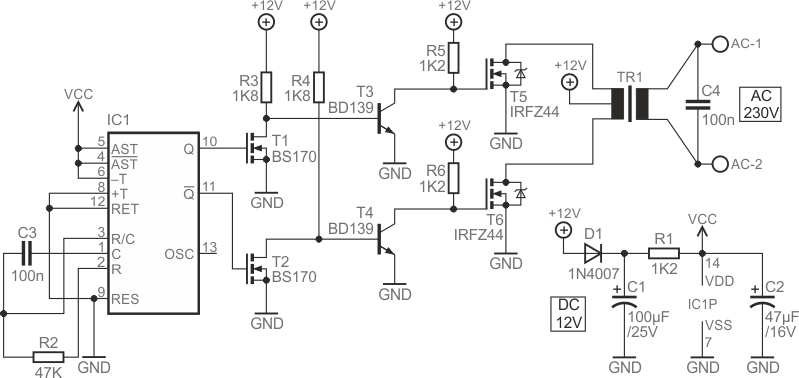

Este inversor para cargas de 230 V (220 V) se encontró en la documentación de Internet de 2021 y se basa en Texas Instruments 4047. El circuito también puede funcionar con una salida de 110 V y 50 o 60 Hz. La corriente de entrada máxima es de 5A.





Inversor de potencia
Inversor de potencia | Haga click en la imagen para ampliar |
