Inversor de 50W (CIR20833S)

Written by: Newton C. Braga
Category: Banco de circuitos

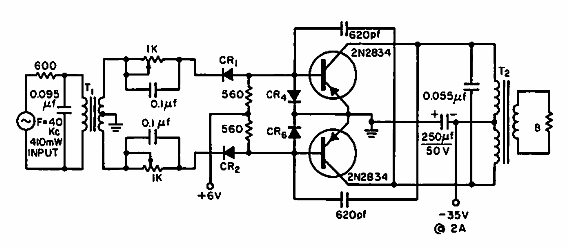

Este circuito para una frecuencia de 40 kHz se encontró en una Electronic Design antigua. No hubo datos constructivos para el transformador utilizado en la salida.



Inversor de 50W
Inversor de 50W
