Control de media onda (CIR20723S)

Written by: Newton C. Braga
Category: Banco de circuitos

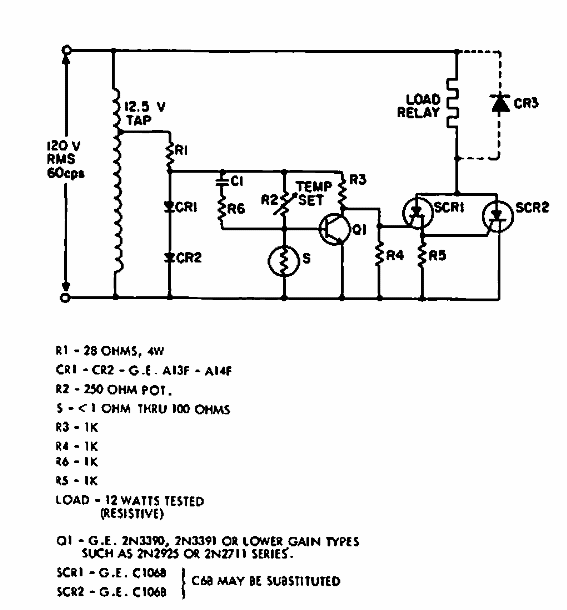

Este circuito para elementos calefactores se tomó de un manual de General Electric de 1966. Los SCR se basan en la carga y el sensor es de 1 ohm.



Control de media onda
Control de media onda
